Enhanced Receiver Sensitivity
Extended range capabilities
The development of ultra-sensitive receivers significantly extends the operational range of tracking devices. Advanced signal processing algorithms and optimized antenna designs enable communication over distances that were previously impossible with conventional tracking technologies.
These high-sensitivity receivers can maintain communication links even in challenging environments such as dense vegetation, urban areas, or mountainous terrain. The extended range capabilities reduce the need for frequent data collection and enable monitoring of animals across larger territories.
Signal processing innovations
Sophisticated digital signal processing techniques improve signal acquisition and tracking performance in challenging environments. Adaptive filtering algorithms reduce noise and interference while maintaining signal integrity, ensuring reliable data transmission even in electromagnetically noisy environments.
The implementation of advanced modulation schemes and error correction codes further enhances communication reliability, ensuring that critical tracking data reaches researchers even under adverse conditions.
BioLoc Rx, automatic & autonomous
Get data remotely at more than 136kms of range
- 434MHz Data reception link
- 868MHz Inter-station link
- Bluetooth Low Energy to collect saved data
- Non-volatil internal memory
- GNSS receiver
- GSM 2G network to send data via mail directly
- Omni-directional antenna
- Optionnal : directionnal antenna to gain x1,5 range
CIRRUS II 434 Receiver
Numeric receiver with high sensitivity
- Compatible transmitters 433.052MHz to 434.792MHz
- 580 channels
- GNSS receiver
- YAGI Antenna
- Internal compass to indicate direction and distance directly between you and your device

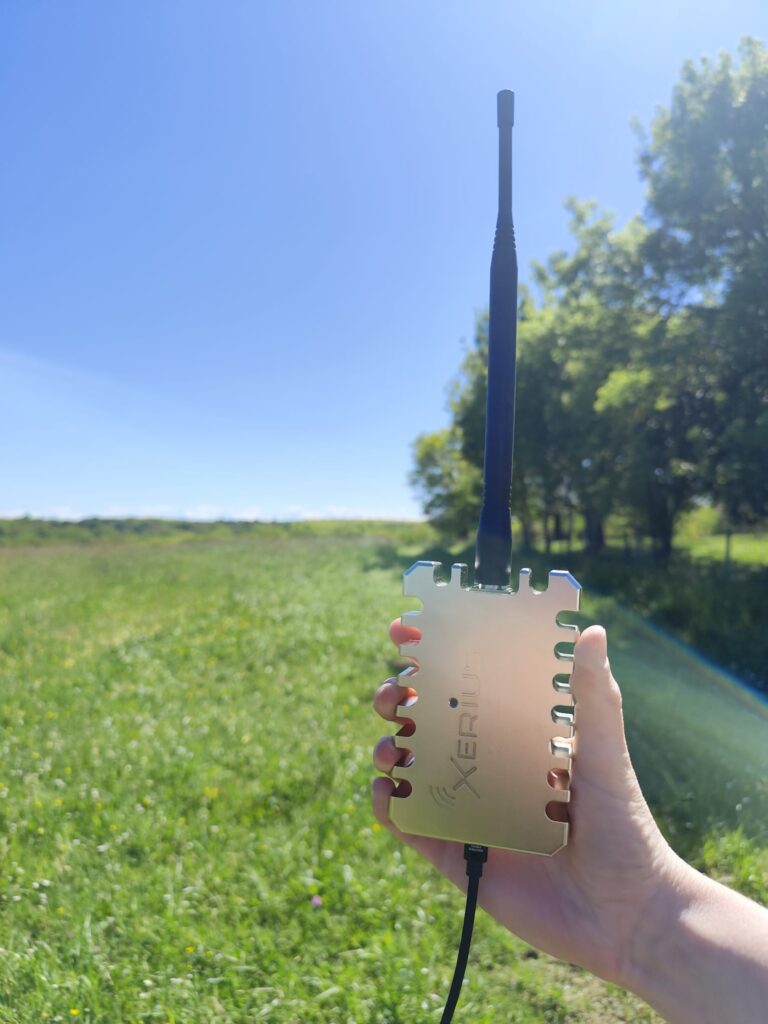

USB Key Lite & USB Performance
Mastered your tags
- 434MHz Data reception link
- Reprogrammation
- Download data
- Delete memory
- Change parameters
- Activate « Rescue Mode »
- 1km LOS1 for USB Key Lite
- 136kms LOS1 for USB Performance
¹ LOS means Line of Site in open area.
Desert conditions: 76 km range with signal levels of -112 dBm/-134 dBm
Hilly dense forest: 32 km range with signal levels of -119 dBm/-134 dBm
Desert conditions: 76 km range with signal levels of -112 dBm/-134 dBm
Hilly dense forest: 32 km range with signal levels of -119 dBm/-134 dBm
